Samsung Phone Repair Tips

Assembly

S7 edge

S8

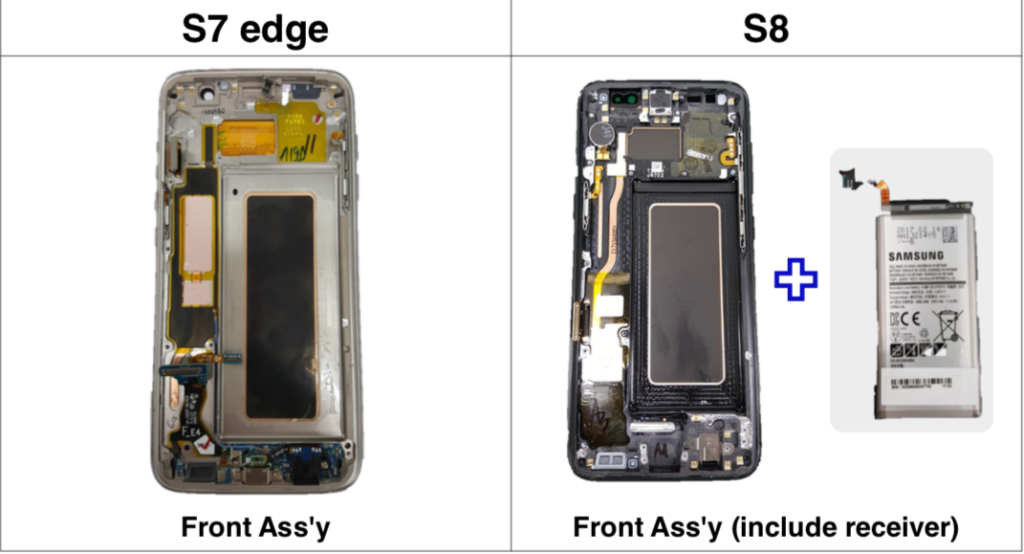

– The S8 display also cannot be separated from the bracket as same as S7 edge.
– In addition, the battery & receiver cannot be reused.
– So, when the front ass’y is changed to the new one, the battery should be ordered together.

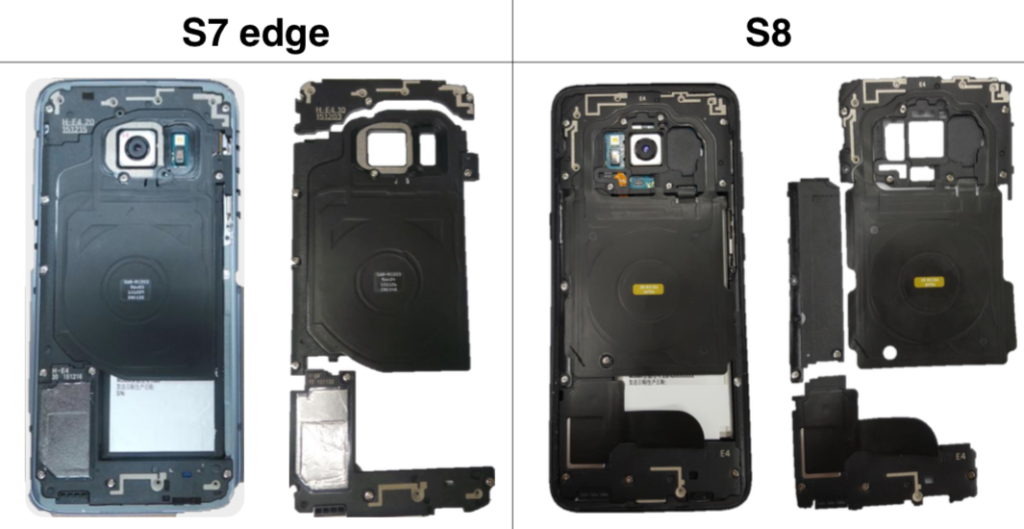

3-pieces of plastic cases
– Speaker and main antenna in bottom piece
– MST, NFC and W/C pad in middle piece
3-pieces of plastic cases
– Speaker and main antenna in bottom piece – MST, NFC and W/C pad in middle piece
– Graphite sheet is located in left side piece

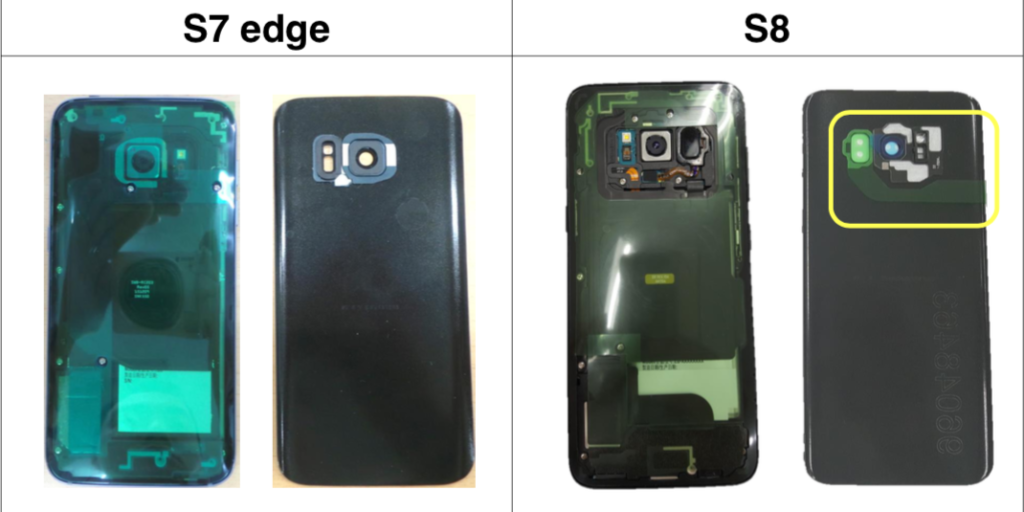

Before reassembling, the outside tape & inside tape should be changed.Before reassembling, the outside tape & inside tape & fingerprint sensor tape should be changed.
S7 Edge & S8 Back Glass Assembly

Touch key is included in the front ass’y.There are no touch-key in the Sub-PBA.

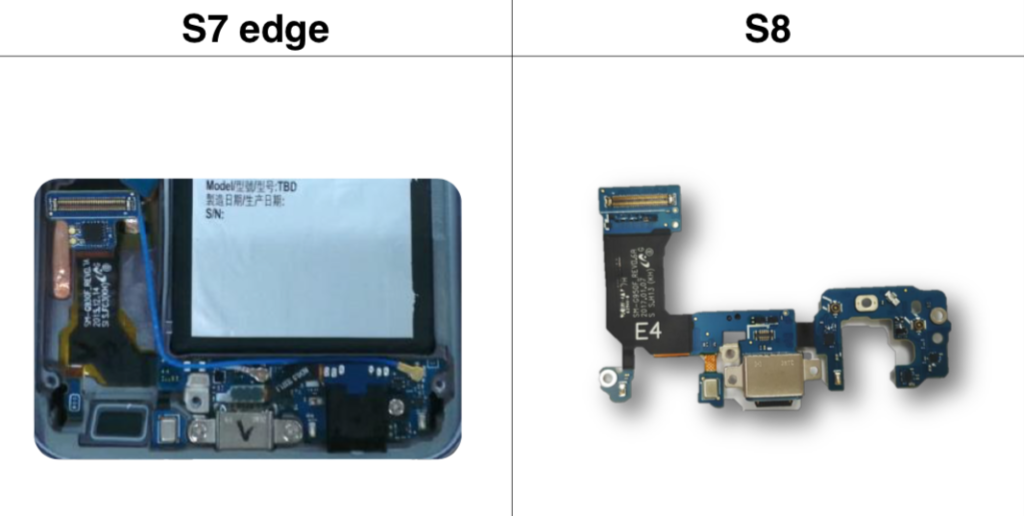

The S8 Sub PBA -CHARGING FLEX can be replaced without OCTA disassembling.
